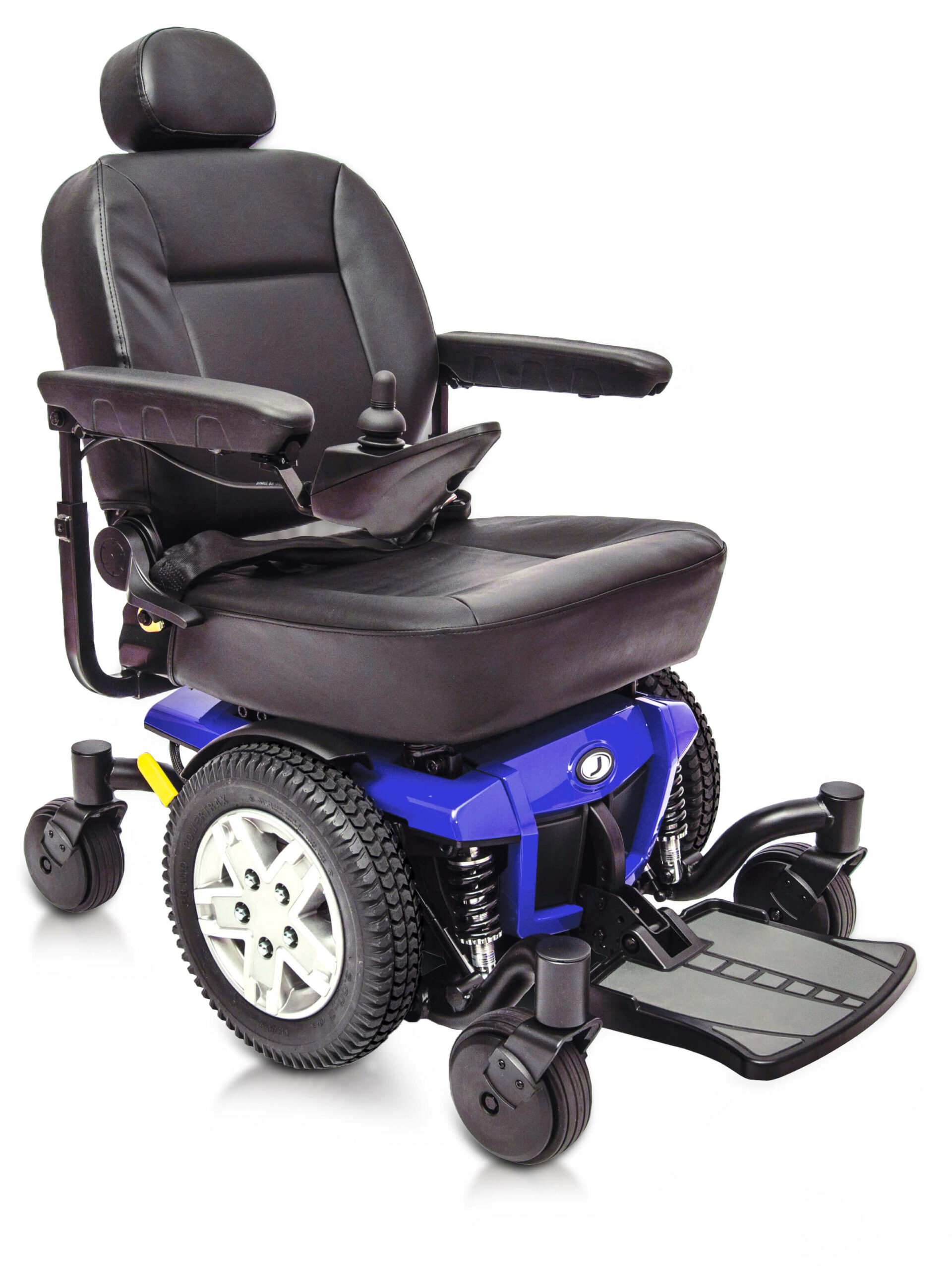

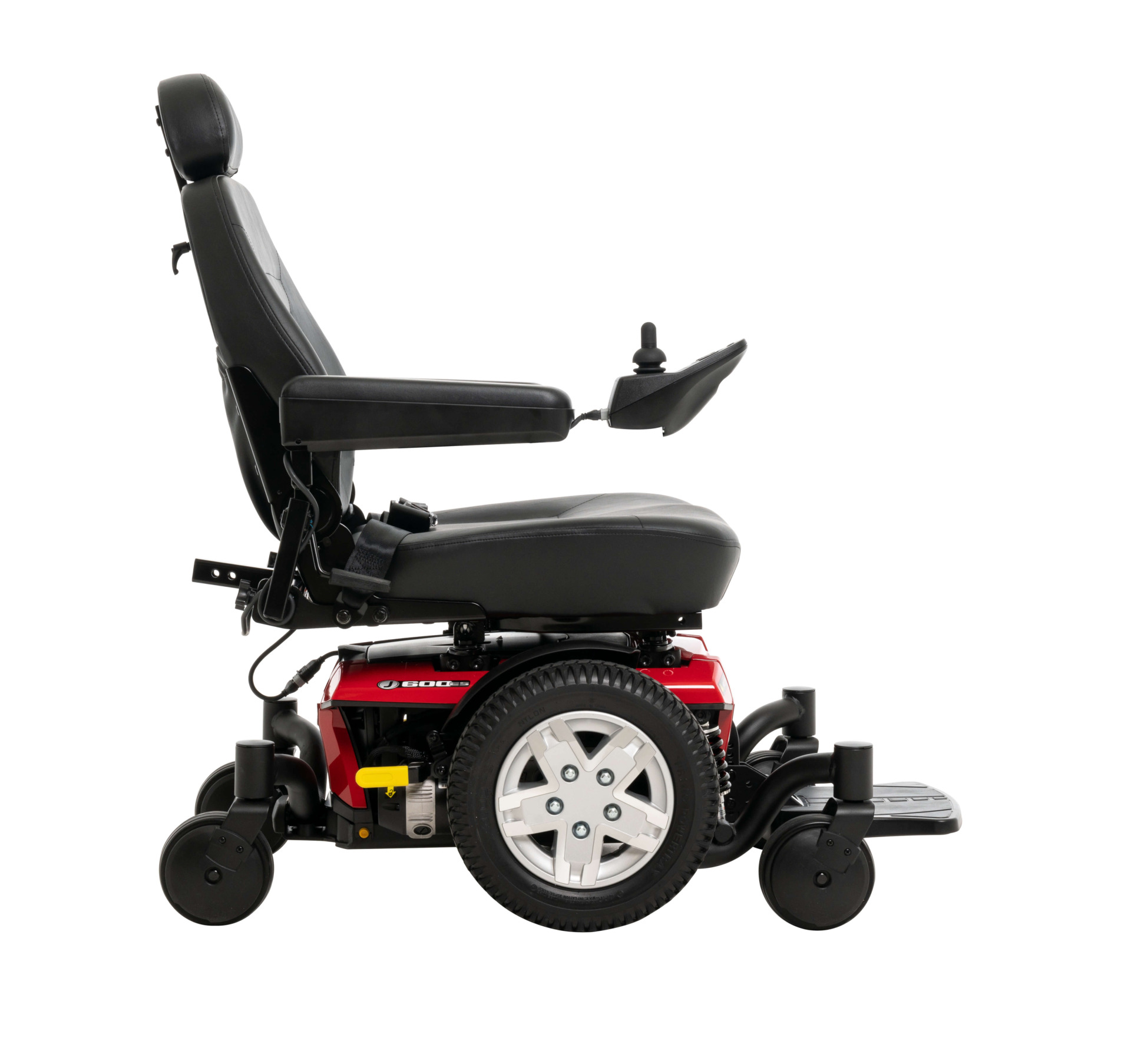

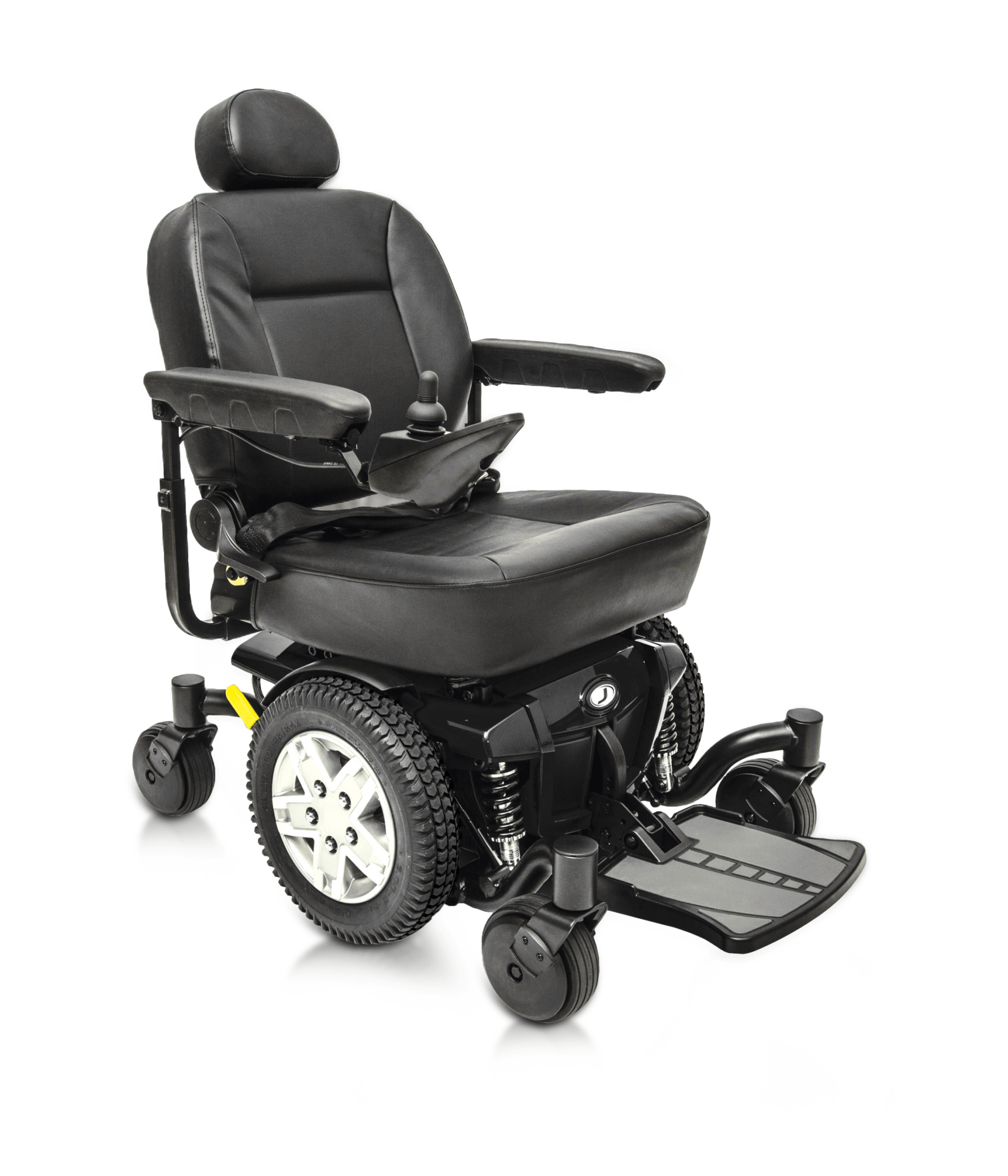

Jazzy 600 ES
Up to 6 km/h
56.1 kg
Outstanding performance, excellent control
The Jazzy® 600 ES provides excellent performance and outstanding stability. Its compact design and standard Active-Trac® ATX Suspension allow it to excel indoors and out, making it a superb, all-around power chair choice.
Specifications
| Weight Capacity | 21 st 6lbs (136 kg) |
|---|---|
| Maximum Speed | 4 mph (6.4 km/h) |
| Ground Clearance | 70 mm (2.75") |
| Overall Length | 1022 mm (40.25") |
| Overall Width | 622 mm (24.5") |
| Turning Radius | 521 mm (20.5") |
| Standard Controls | PG VR2 Control |
| Total Weight (without battery, base only) | 56 kg |
| Seating | Comfort High Back Seat 16” W -- Adjustable depth from 16” - 18” 18” W -- Adjustable depth from 18” - 20” 20” W -- Adjustable depth from 18” - 20” |
| Tyres | Front: 152mm (6") Rear: 355mm (14") |
| Suspension | Active-Trac® (ATX) |
| Battery Requirements | 2 x 50 Ah |
| Battery Weight (each) | 16.9 kg each |
| Note | 1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
Overview
Download our
product brochure
Download our product brochure here to get an overview of our latest product range!
Features
- OMNI-Casters -Spherical caster shrouding design to prevent hang-ups when climbing
- Active-Trac® ATX Suspension -Enhances comfort and performance
- Large 14” Drive Wheels- Exceptional traction on varied surfaces
- Easy-Access Freewheel-Freewheel levers are easily accessed for caregiver assistance
