Maxima
Up to 9.3 km/h
83.3 kg
Heavy-duty design & outstanding performance

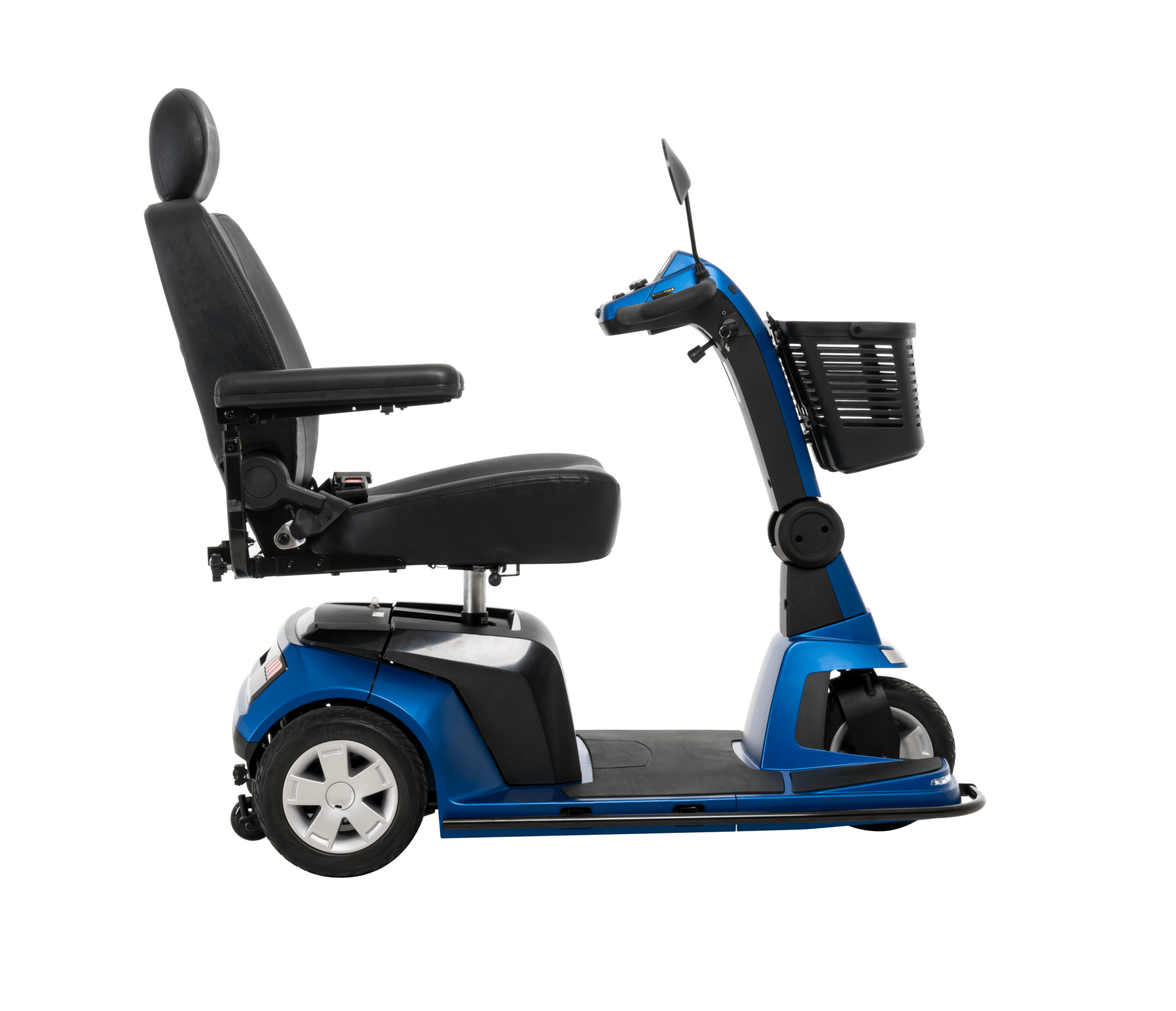

The Maxima mobility Scooter from the ‘Pride® Scooter’ range, combines heavy-duty design, with elegant outstanding performance. An impressive selection of enhanced standard features - 68.5 cm (22”) wide medium-back seat, ultra-heavy duty drivetrain, rear suspension and an increased weight capacity of up to 36 Stone. (227 kg) - make the Maxima comfortable and give it enough brawn to tackle any challenge.
Specifications
| Weight Capacity | 36 Stone (227 kg) |
|---|---|
| Maximum Speed | 5.8 mph (9.33 km/h) |
| Ground Clearance | 3-wheel: 63.5 mm (2.5") 4-wheel: 57 mm (2.25") |
| Overall Length | 1206 mm |
| Overall Width | 68.5 cm |
| Turning Radius | 3 Wheel: 1245 mm (49") 4 Wheel: 1346 mm (53") |
| Standard Controls | LED Display |
| Total Weight without batteries | 3-Wheel: 83.25 kg 4-Wheel: 89.25 kg |
| Seating | Type: High Back Weight: 53.25 lbs. (24.25 kg) Material: Vinyl Width: 21 in. (533 mm) Depth: 18.5 in. (470 mm) |
| Tyres | Front: 7.5 cm x 25 cm (3” x 10”) solid Rear: 10 cm x 25 cm (4” x 10”) solid |
| Battery Requirements | Type: Two 12-volt, sealed lead-acid, non-spillable deep-cycle Size: NF22 |
| Battery Weight (each) | 16.5 kg each |
| Note | 1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
Overview
Download our
product brochure
Download our product brochure here to get an overview of our 2021 product range!
Features

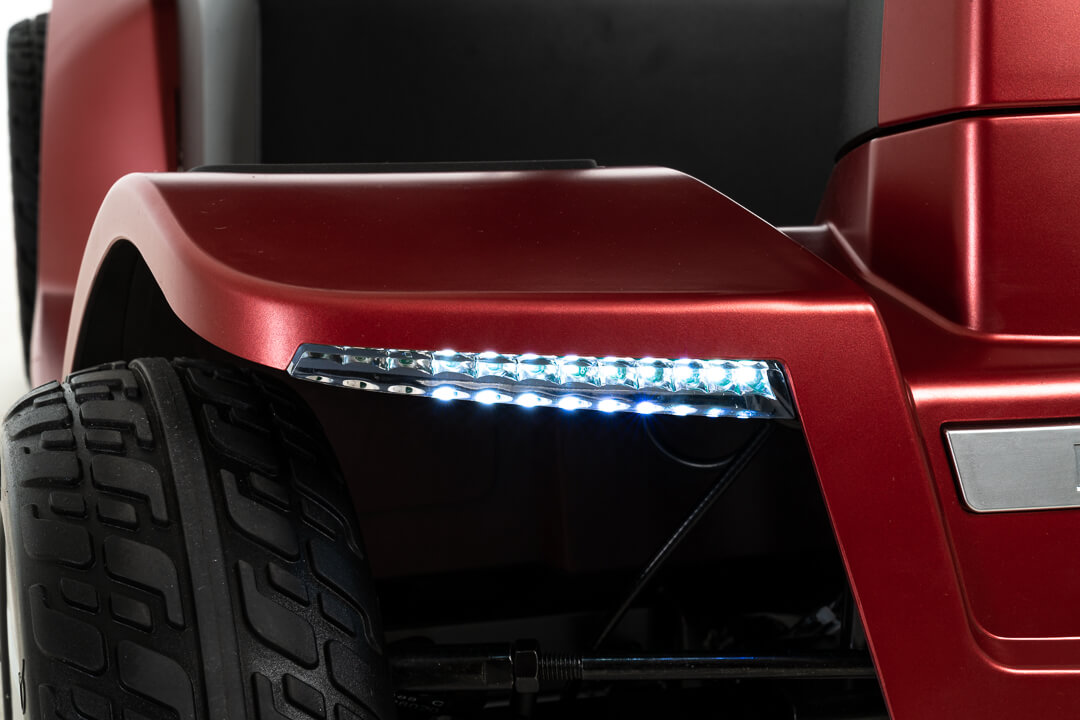

- Lighting – Large front headlight for increased visibility in low-light settings with directional signals
- Easily Adjustable Tiller – Adjusts steering and controls to your desired position
- Bumper Protection – Durable and stylish front and rear polyurethane bumper
- Comfort Seat – Medium-back seat with swivel
